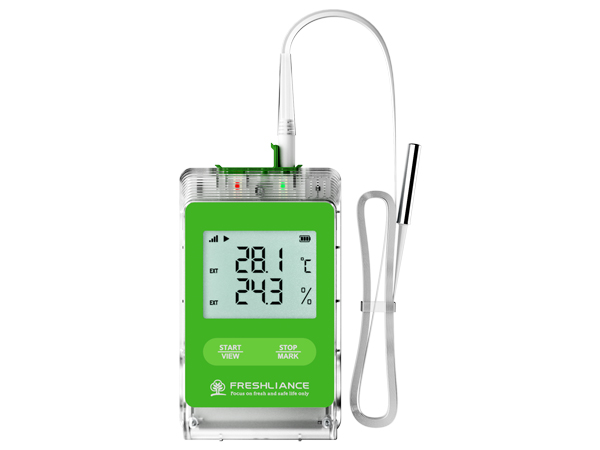

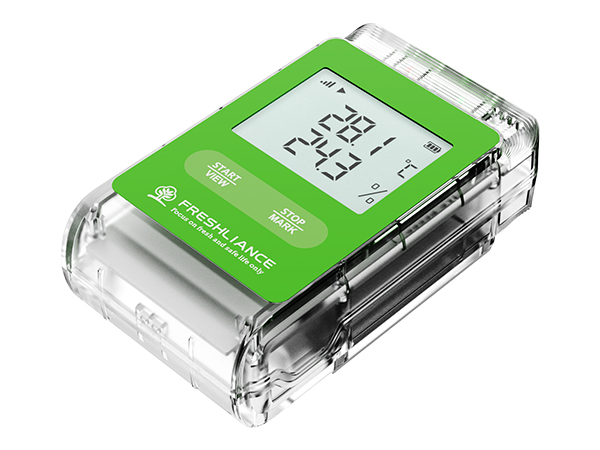

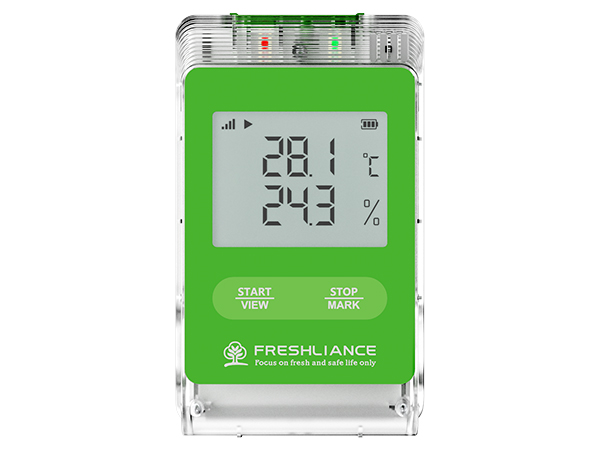

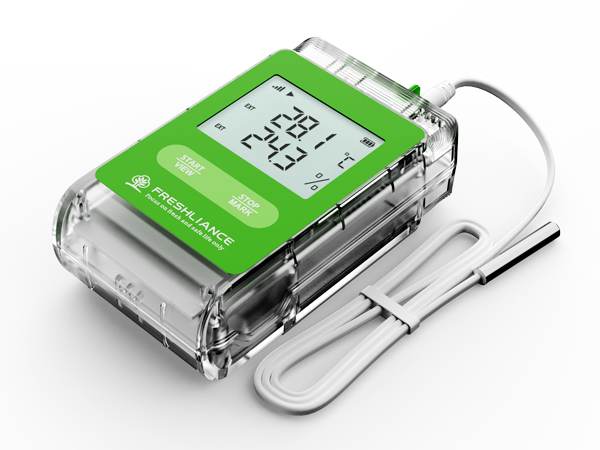

Fresh Tracker 10 is a real time temperature humidity data logger with geolocation, based on IOT platform. It is suitable for the cold-chain logistics and storage of fruits and vegetables, drinks, fresh produce, dairy products, vaccines, etc.
Fresh Tracker is a real time temperature and humidity data logger with geolocation on the E-map. The logger can not only record real time and historical temperature and humidity data during the whole logistics process, but also provide real time and historical geolocation data based on LBS base station positioning. It is an ideal instrument for logistics and quality control.
Real-time monitoring and positioning
The logger can monitor real-time temperature and humidity at any time. And with LBS base station positioning technology, both real-time and history geolocation data is provided on the E-map.
Data stored in the cloud, easy to manage and track
All data is stored on our cloud platform, easy to manage and track.
Persistent caching during offline mode, and data re-upload after network recovery
The logger will not stop recording and storage during offline mode. The data that is not successfully uploaded during network failure can be automatically re-uploaded after network recovery.
Real-time alarm notification
An alarm will be notified via the LED indicator on the device and SMS/Email from the platform or APP.
Data filtration by date
With our free APP or web platform, the user can view the data of a certain period.
Parameters configurable
Start delay, logging interval, uploading interval, alarm settings, device calibration, and other parameters are all configurable as needed.
Temporary report available
During normal working status, a temporary report can be generated by connecting the logger to a computer or remotely generated through our free APP or web platform.
Data privacy
Both the APP and web platform are password-protected.
|
Model |
Fresh Tracker 10s |
Fresh Tracker 10 |
Fresh Tracker-ETU |
|
Type of Use |
Single use |
Multi use |
|
|
Built-in Sensor |
-30℃~+70℃, ±0.5℃ F.S. |
||
|
0~100%RH, ±3%RH |
|||
|
Light Sensor |
Optional |
||
|
Vibration Sensor |
Optional |
||
|
External Probe |
See the external probe list |
||
|
Flight Mode |
√ |
||
|
Positioning Technology |
LBS positioning, GPS optional |
||
|
Local Report |
USB Type-C interface to download full trip report |
||
|
Memory Capacity |
Max. 30,000 readings each probe |
||
|
Alarm Range |
User configurable (Default: 2-8℃) |
||
|
Logging Interval |
User configurable (Default: 10 minutes) |
||
|
Uploading Interval |
User configurable (Default: 60 minutes) |
||
|
Charging Port |
Type-C DC5V/2A |
||
|
Installation |
3M adhesive tape, hanging |
||
|
Dimensions |
101mm*60mm*34mm |
||
|
Weight |
200g (Main device) |
||
|
Temperature Units |
℃/℉ |
||
|
Battery Life |
Max. 120 days |
||
|
Operation System |
Web, APP |
||
|
Cellular Network |
4G (LTE_Cat1) with 2G (optional) |
||
|
Battery |
3.7V lithium battery (rechargeable), UN38.3 complied; Non-lithium battery optional |
||
Externl Probe List:
|
Probe Type |
Measuring Range |
Measuring Accuracy |
|
Temperature Probe |
-30℃~+70℃ |
±0.5℃ (-30℃~+50℃) ±1.0℃(Other) |
|
-196℃~+200℃ |
±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) |
|
|
-90℃~+200℃ |
±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) |
|
|
Temperature and Humidity Probe |
-40℃~+85℃ |
±0.5℃ F.S. |
|
0-100%RH |
±3%RH (25℃, 20%~90%RH) ±5%RH (Other) |
|
|
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m. |
||
Fresh Tracker 10 is a real time temperature and humidity data logger with geolocation, based on IOT platform. It is suitable for the cold-chain logistics and storage of fruits and vegetables, drinks, fresh produce, dairy products, vaccines, etc.
The most important aspect of the cold chain is to control the temperature and humidity within a proper range, so as to maximize product performance and prolong product life cycle. With this logger, the user can remotely get real time temperature and humidity data via our free APP and web platform and take specified corrective actions to minimize the loss.
And with LBS base station positioning and 4G(LTE_Cat1)/2G technology, the logger enables the user to easily get the real time geolocation of products and control the whole logistics route.
